Choosing the Correct Wing Pulley: Design, Performance & Maintenance

When it comes to conveyor belt pulleys, there’s a lot to cover – from application and design to the manufacturing process. In this installment, we will take a closer look at Wing Pulleys – highlighting their unique features, key design considerations, and best practices for maintenance to help ensure optimal performance in your operation.

Wing pulleys serve an essential role in preventing material buildup while clearing debris that could get trapped between the belt and pulley. They generally come in two designs—straight wing pulleys and herringbone wing pulleys—both aimed at enhancing efficiency. A straight wing pulley consists of round or flat bars extending across the face of the pulley, while a herringbone wing pulley modifies this setup by angling the wings to form a V-shaped pattern. This adjustment improves material ejection and ensures better contact with the belt, leading to smoother operation.

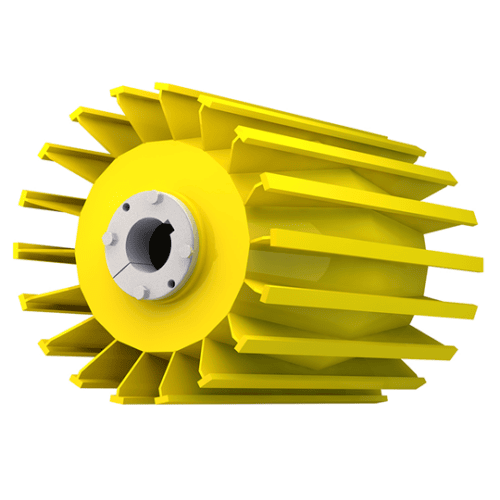

Straight Wing Pulleys: Mine Duty vs. Quarry Duty

Straight wing pulleys can be categorized into two types:

• Mine Duty Wing Pulley: Built with a retaining ring at the end of the wings for added rigidity. It has a slightly smaller barrel, resulting in longer legs. This design is ideal for applications where material is already processed and smaller in size. However, the retaining ring can trap material before ejection.
• Quarry Duty Wing Pulley: Features a larger center barrel, shorter legs, and thicker wings to withstand heavy loads and impacts. This robust design reduces the risk of wing folding into the pulley barrel, making it more durable in demanding conditions.

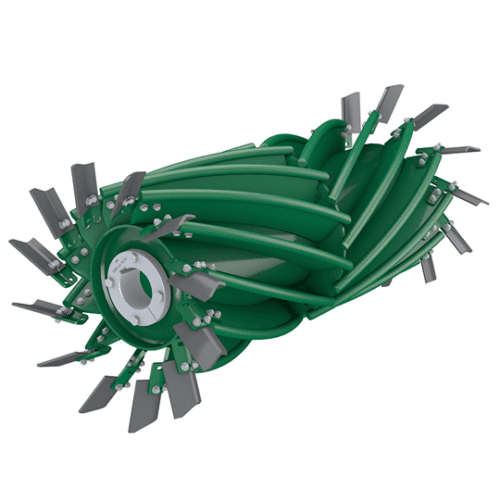

Herringbone Wing Pulley: Maximum Performance in Harsh Conditions

Despite these maintenance considerations, wing pulleys remain highly effective at minimizing material buildup. When properly selected for the application, they help reduce downtime, extend belt life, and contribute to a cleaner, more efficient operation.

A well-designed wing pulley is only effective if properly maintained. Regardless of design, upkeep is essential for ensuring longevity and efficiency.

• Regular Bearing Greasing: Wing pulleys often operate in the dirtiest sections of a conveyor system, making lubrication essential to prevent premature wear.
• Clearing Debris: Materials lodged between wings can damage the conveyor belt with every rotation. Removing buildup prevents costly wear and belt damage.
• Avoiding Lockups: If a wing pulley seizes, its reduced contact area can lead to severe belt damage. Keeping pulleys clean and well-maintained minimizes this risk.

Beyond maintenance, the herringbone wing pulley is specifically designed to withstand extreme applications. By utilizing the overlapping angle of the bars at the center, it maintains greater contact with the conveyor belt, extending belt life while efficiently ejecting material away from the pulley’s center. Reinforced with a center disk, it resists wing folding, ensuring durability in demanding conditions. When other wing pulleys fail, the herringbone design remains a reliable solution.

Beyond performance consideration, proper maintenance is essential for keeping wing pulleys in peak condition.

Since they often operate in the dirtiest sections of a conveyor system, regular bearing greasing is crucial to preventing premature wear. Over time, consistent lubrication ensures smooth rotation and reduces the risk of uneven wing wear, which can negatively impact performance.

Neglecting maintenance can lead to serious issues. If debris becomes lodged between the wings, it can press against the belt and cause repeated damage with every rotation. Likewise, a locked-up wing pulley poses a significant risk, as its reduced contact area can quickly result in severe belt damage.
